PCB0006 - RFM12 breakout

Jul 13, 2012

I made this simple little board so I could use the popular Hope RFM12 with a breadboard. This allows experimentation with the various FIFO modes and code to interface with the chip. Stray capacitance from the breadboard doesn’t seem to have a huge effect, I was able to send and receive data just fine using a simple 1/4 wave antenna made from wire.

To enable reuse of the RFM12 module I found a connector that is the exact same pitch and spacing. It is made by Hirose DF11-12DS-2DSA and is available from Farnell (SKU 1688321). The LED is an optional indicator of module power.

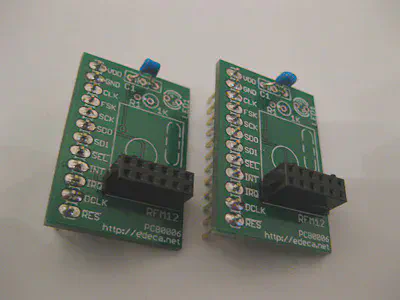

PCB0006 completed

Download

License

This work is made available under the Creative Commons Attribution-NonCommercial-ShareAlike (CC BY-NC-SA) license.
